<?xml version="1.0" encoding="UTF-8"?>
-<ISO15745Profile xmlns="http://www.profibus.com/GSDML/2003/11/DeviceProfile" xsi:schemaLocation="http://www.profibus.com/GSDML/2003/11/DeviceProfile ..\XSD\GSDML-DeviceProfile-v2.25.xsd" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
-<ProfileHeader>
<ProfileIdentification>PROFINET Device Profile</ProfileIdentification>
<ProfileRevision>1.00</ProfileRevision>
<ProfileName>Device Profile for PROFINET Devices</ProfileName>
<ProfileSource>PROFIBUS Nutzerorganisation e. V. (PNO)</ProfileSource>
<ProfileClassID>Device</ProfileClassID>
-<ISO15745Reference>
<ISO15745Part>4</ISO15745Part>
<ISO15745Edition>1</ISO15745Edition>
<ProfileTechnology>GSDML</ProfileTechnology>
</ISO15745Reference>
</ProfileHeader>
-<ProfileBody>
-<DeviceIdentity DeviceID="0x10E" VendorID="0x002A">
<InfoText TextId="EmptyString"/>
<VendorName Value="SIEMENS"/>
</DeviceIdentity>
-<DeviceFunction>
<Family ProductFamily="CPU 1511-1 PN" MainFamily="PLCs"/>
</DeviceFunction>
-<ApplicationProcess>
-<DeviceAccessPointList>
-<DeviceAccessPointItem AddressAssignment="LOCAL" MaxSupportedRecordSize="32768" MinDeviceInterval="128" MultipleWriteSupported="true" RequiredSchemaVersion="V2.25" ObjectUUID_LocalIndex="100" ModuleIdentNumber="0x16300" DeviceAccessSupported="true" FixedInSlots="1" PhysicalSlots="1" DNS_CompatibleName="vm4flexlinecpu" ID="DAP1">
-<ModuleInfo>
<Name TextId="DAP_Name_ID"/>
<InfoText TextId="DAP_Description_ID"/>
<OrderNumber Value="6ES7 511-1AK00-0AB0"/>
<SoftwareRelease Value="V1.1"/>
</ModuleInfo>
-<SubslotList>
<SubslotItem TextId="Interface_SubslotLabel" SubslotNumber="32768"/>
<SubslotItem TextId="Port32769_SubslotLabel" SubslotNumber="32769"/>
<SubslotItem TextId="Port32770_SubslotLabel" SubslotNumber="32770"/>
</SubslotList>
<IOConfigData MaxDataLength="2880" MaxOutputLength="1440" MaxInputLength="1440"/>
-<VirtualSubmoduleList>
-<VirtualSubmoduleItem ID="VSM_2_1000" FixedInSubslots="1000" SubmoduleIdentNumber="0x20000002">
-<IOData IOCS_Length="1" IOPS_Length="1">
-<Input>
<DataItem TextId="VSM_2_1000" DataType="OctetString" Length="2"/>
</Input>
</IOData>
-<ModuleInfo>
<Name TextId="Transferbereich_1"/>
<InfoText TextId="Transferbereich_1_Comment"/>
</ModuleInfo>
</VirtualSubmoduleItem>
</VirtualSubmoduleList>
-<SystemDefinedSubmoduleList>
-<InterfaceSubmoduleItem TextId="Interface" ID="Interface" SubslotNumber="32768" SubmoduleIdentNumber="0xf00" SupportedRT_Classes="RT_CLASS_1" SupportedProtocols="SNMP;LLDP" SupportedMibs="MIB2" ParameterizationDisallowed="true" NetworkComponentDiagnosisSupported="true">
-<ApplicationRelations>
<TimingProperties ReductionRatioPow2="1 2 4 8 16 32 64 128 256 512" ReductionRatioNonPow2="1" SendClock="128" PreferredSendClock="128"/>
</ApplicationRelations>
<MediaRedundancy SupportedRole="Manager;Client"/>
</InterfaceSubmoduleItem>
<PortSubmoduleItem TextId="Port_1" ID="Port_1" SubslotNumber="32769" SubmoduleIdentNumber="0xf01" ParameterizationDisallowed="true" IsDefaultRingport="true" SupportsRingportConfig="true" PortDeactivationSupported="true" MAUTypes="16" MaxPortTxDelay="280" MaxPortRxDelay="374"/>
<PortSubmoduleItem TextId="Port_2" ID="Port_2" SubslotNumber="32770" SubmoduleIdentNumber="0xf02" ParameterizationDisallowed="true" IsDefaultRingport="true" SupportsRingportConfig="true" PortDeactivationSupported="true" MAUTypes="16" MaxPortTxDelay="280" MaxPortRxDelay="374"/>
</SystemDefinedSubmoduleList>
</DeviceAccessPointItem>
</DeviceAccessPointList>
-<ExternalTextList>
-<PrimaryLanguage>
<Text TextId="EmptyString" Value=""/>
<Text TextId="Interface_SubslotLabel" Value="X1"/>
<Text TextId="Port32769_SubslotLabel" Value="Port1"/>
<Text TextId="Port32770_SubslotLabel" Value="Port2"/>
<Text TextId="DAP_Name_ID" Value="vm4flexlinecpu"/>
<Text TextId="DAP_Description_ID" Value="CPU mit Display; Arbeitsspeicher 150KB Code und 1MB Daten; 60ns Bitoperationszeit; PROFINET IO-Controller, unterstützt RT/IRT, 2 Ports, MRP, Transportprotokoll TCP/IP, Webserver, Äquidistanz, Routing; 4-stufiges Schutzkonzept, integrierte Technologiefunktionen: Motion, Regeln, Zählen&Messen; Firmware V1.1"/>
<Text TextId="Interface" Value="Interface"/>
<Text TextId="Port_1" Value="Port 1"/>
<Text TextId="Port_2" Value="Port 2"/>
<Text TextId="Transferbereich_1" Value="Transferbereich_1"/>
<Text TextId="Transferbereich_1_Comment" Value=""/>
<Text TextId="VSM_2_1000" Value="VSM_2_1000"/>
</PrimaryLanguage>
</ExternalTextList>
</ApplicationProcess>
</ProfileBody>
</ISO15745Profile>
Hallo, könnte mir jemand mal den Link für diese Anleitung hier rein stellen?Eine GSD Datei aus meiner CPU (und Panel) erzeugen und dem Kunden zur Verfügung zu stellen. Dies hätte den Vorteil, dass der Kunde ein eigenes Projekt hat und meine GSD Datei beliebig integrieren kann. Über einen Transferbereich könnte man dann die Daten auslesen.

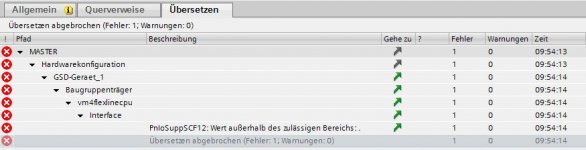

Dies wäre die bessere Lösung, leider funktioniert das irgendwie nicht ganz bei mir. Ich habe eine GSD Datei nach der Siemensanleitung erzeugt und in anderes Projekt integriert. Leider bekomme bei Übersetzen der CPU die die Daten auslesen soll eine Fehlermeldung...
Hallo, könnte mir jemand mal den Link für diese Anleitung hier rein stellen?
Der Link ist leider kaputt..einen Link kann ich Dir nicht geben aber ein Blick in die TIA Hilfe wird reichen
das ist kein Link unter dieser Überschrift kann man das in der TIA Hilfe finden , wenn man sich die Mühe macht die Hilfe zu öffnenDer Link ist leider kaputt..
