Hi all!

In my Step7 i can set an outputbit indexed by an integer more or less like this:
(range of 64 limiting omitted).

L P#xS0 // the first output bit
LAR1
L 0
T DW[AR1,P#0.0] // reset all outputs
T DW[AR1,P#4.0]
L iStep // output bit to be set
+AR1
SET
= [AR1,p#0.0]

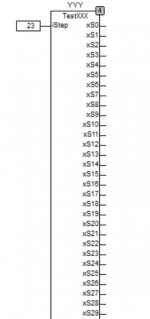

I like the outputs to be boolean pins on the function block, because of the convenience when used in CFC.

So my question is; how can this be done in CoDeSys (V2)?
Do I need to make 64 comparisation rungs?

MfG
Kaputt



[StructuredTrash]

I don't really know Step7, but I think I know what you want. In CoDeSys 2 there are no real bit variables except in the I/O area, so in your FB you have to use 64 BOOL variables "Xs0".."xs63" which are in fact 64 bytes. You can access them with a pointer to an array[0..63] OF BOOL.

FUNCTION BLOCK IndexBit;
VAR_INPUT
   Index:USINT;
END_VAR
VAR_OUTPUT
   xs0:BOOL;
   xs1:BOOL;
   xs2:BOOL;
    *
    *
   xs63:BOOL;
END_VAR
VAR
   P:POINTER TO ARRAY[0..63] OF BOOL;
   Loop:BYTE;
END_VAR

P:=ADR(xs0);   (* Set pointer to first bool output *)
FOR Loop:=0 TO 63 DO
   P^[Loop]:=FALSE;   (* Clear all outputs *)
END_FOR
P^[Index]:=TRUE;   (* Set indexed output *)



[oliver.tonn]

Zuviel Werbung?
-> Hier kostenlos registrieren

It is correct, that in Codesys a Bit is stored internally in a Byte, but of course you can declare an array of Bool.

Von irgendwas mit Internetzugang gesendet.



[StructuredTrash]

It is correct, that in Codesys a Bit is stored internally in a Byte, but of course you can declare an array of Bool.

You are right, but kaputt wants to have single bool FB outputs, not an array.



[kaputt]

Thank you, guys!
I'm sorry not to have responded earlier.

@ST: I'll try the code after this weekend.



[kaputt]

Zuviel Werbung?
-> Hier kostenlos registrieren

ST, your coding worked like a charm!

Vielen Dank, mange takk, thank you!

Kaputt :sm24:
